OpenLab@OST – Your Innovation Hub for (Micro-)Electronics

The IMES team consists of electronics enthusiasts dedicated to fostering innovation and making knowledge accessible. Our state-of-the-art electronics lab offers cutting-edge equipment for companies, inventors, and start-ups—available for rental.



Why is our OpenLab@OST important

In a world shaped by electronics and technology, access to high-quality electronic resources is essential. However, many devices are not cost-effective for all companies. OST plays a key role in promoting education, innovation, and creative thinking in the field of electronics. Our new lab provides a platform where companies and start-ups can develop their skills and work on projects.

The Mission of OpenLab@OST

Our mission is to strengthen the electronics community and pave the way for future collaborations. By creating an open environment that shares knowledge and resources, we aim to drive progress in the electronics sector and provide companies of all sizes the opportunity to thrive in this exciting field.

Take advantage of OpenLab@OST and turn your electronics ideas into reality.

Our New Services

  • Equipment Park: We provide an environment with state-of-the-art electronic equipment to bring your projects to life.
    Laboratory: The lab is available for daily use. If needed, an experienced electronics engineer is on hand to assist.
    Collaboration: We offer space for creativity and collaboration, fostering an environment where innovation thrives.

Our equipment in detail

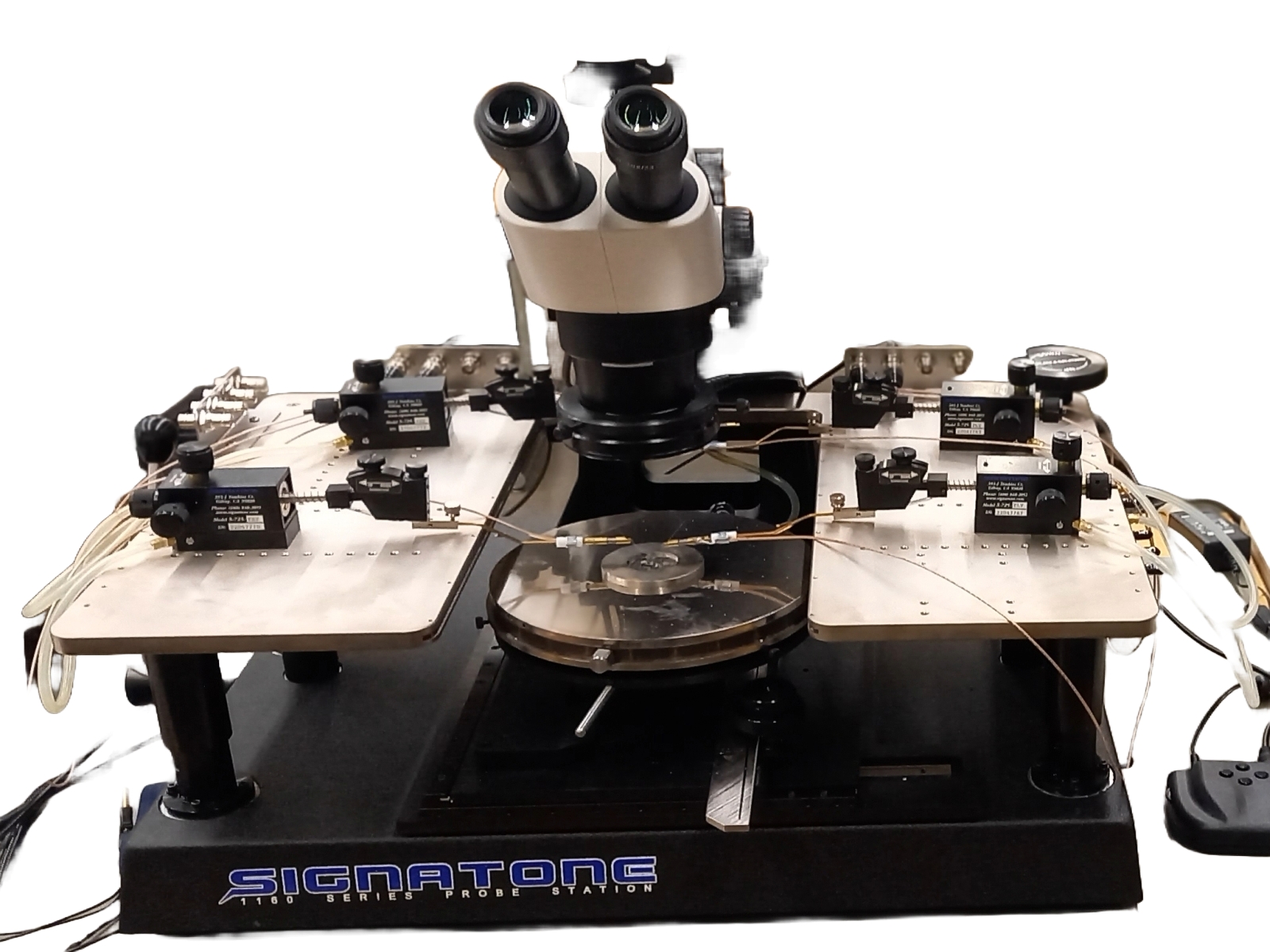

Manual Probe System
  • Chuck 100, 150, 200mm Wafer and 20mm Die
  • Single Die and PCB Adapter
  • 10x Micropositioner
  • Stereo Zoom-Microscope Magnification: 7.5X to 50X and 20X Eyepieces
  • Probe card adapter

Datasheet

Auto Rework-System (Ersa HR 600/2)
  • Automated component placement
  • Automated soldering and desoldering processes
  • Hybrid heating head with two heating zones and IR bottom heating
  • For: 01005-Chips, SMT-Connectors, SMT-Flip-Chips, THT-Pin-Grid-Arrays, BGAs, Flex-Circuit, BGAs
  • For component sizes from 1 x 1 bis 50 x 50 mm

Datasheet

Temperature Test Chamber (CTS T40/100)
  • Test chamber volume: 100l, 500x500x400
  • Temperature Range: -40 to 180°C
  • Transition Rate: ±6 K/min
  • Compressed air dryer
  • USB/RS232 interfaces
  • Cable feedthroughs
  • Sensors: Pt 100 at supply and exhaust air

Datasheet

Thermal Airstream System (Temptronic TP04300A)
  • Programmable Temperature for High speed Testing
  • Temperature Range: -75 to +225 C
  • Transition Rate (air): 10 sec
  • Accuracy: ±1°C
  • Sensors: Internal Diode, Type T and Type K thermocouple and 100 ohm platinum RTD
  • Compredded air dryer

Datasheet

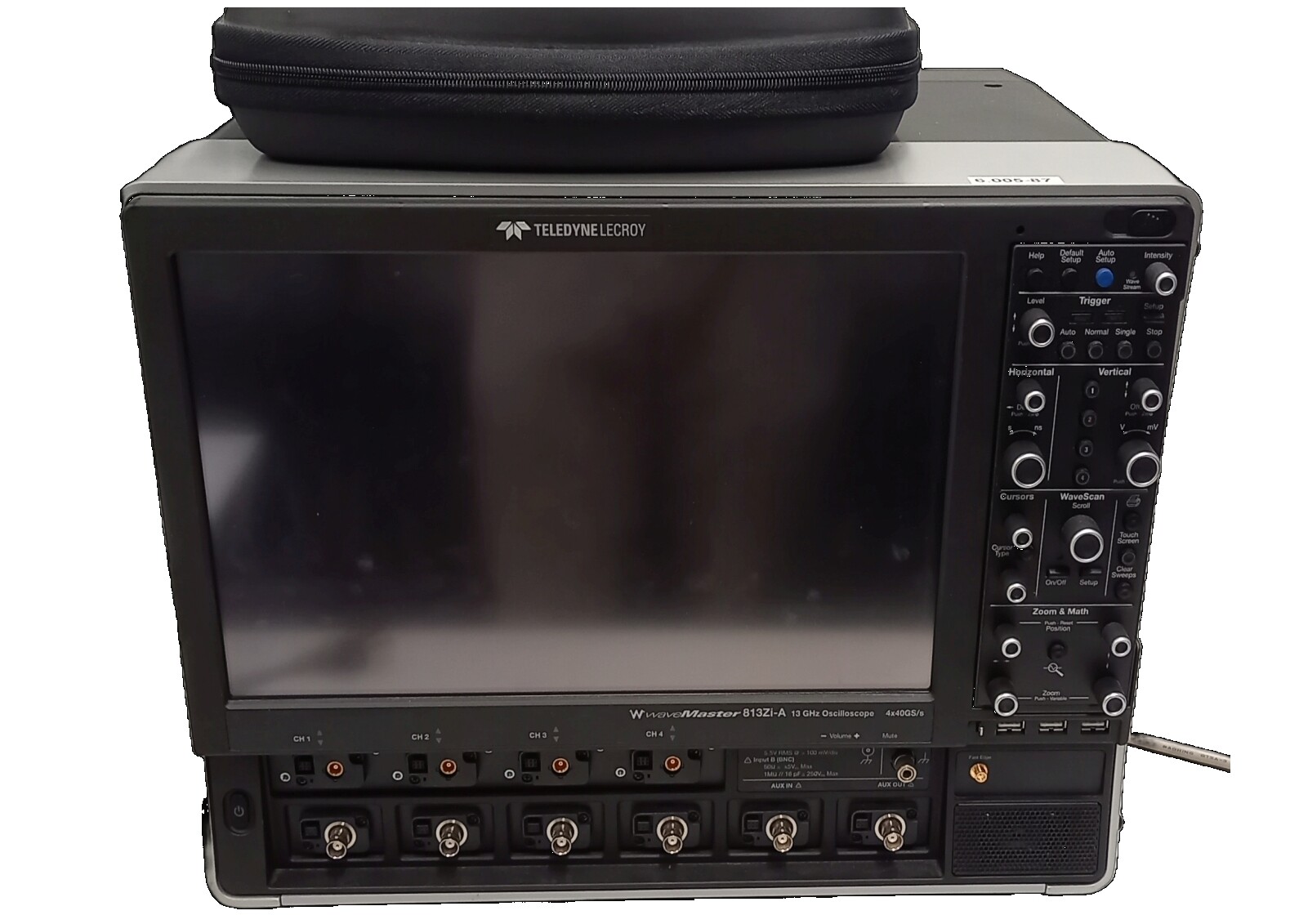

Oscilloscope (LeCroy WaveMaster 813Zi-A)
  • Bandwidth: 13 GHz
  • Sample Rate: 40 GS/s (80 GS/s with 2 Channels)
  • Input Channels: 4
  • Input Voltage Range: ±5V @50 Ohm
  • Vertical Resolution: 8-bit (up to 11 Bit with ERS)
  • 18 Digital Channels

Datasheet

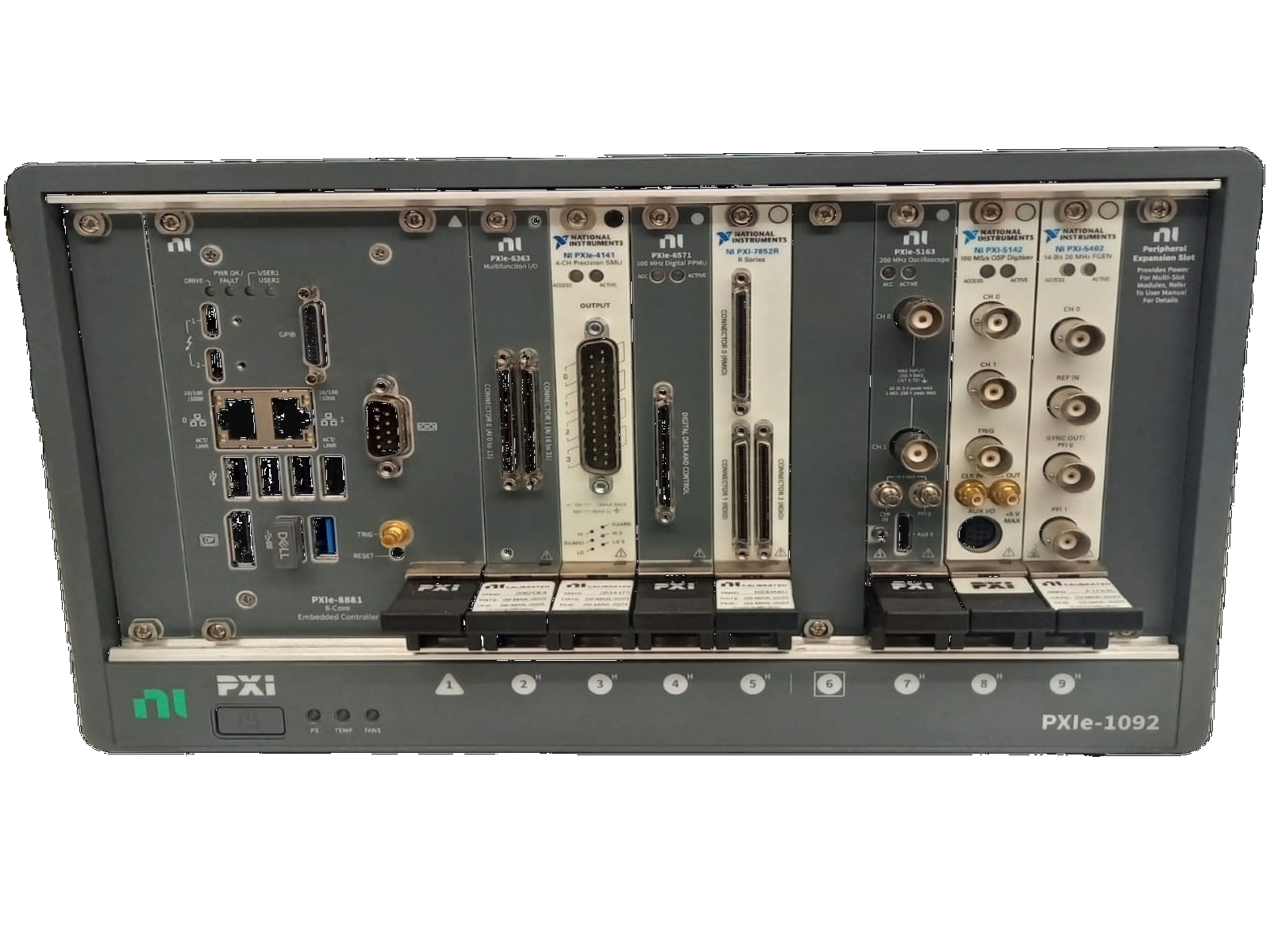

PXI-Tester (NI PXIe-xxxx)
  • PXI-Chassis (PXIe-1092) with up to 24 GB/s (10 slots)
  • Precission SMU (PXIe-4141)
  • Digital Pattern Instrument (PXIe-6571)
  • Arbitrary Function Generator (PXl-5402)
  • Oscilloscope (PXIe-5163 & PXI-5142)
  • Multifunction I/O Module (PXIe-6363)

Datasheet

Vector Network Analyzer (KeySight E5061B)
  • 5 Hz to 3 GHz, ±40 Vdc
  • S-parameter test port (5 Hz to 3 GHz, 50 Ω)
  • Gain-phase test port (5 Hz to 30 MHz, 1 MΩ/50 Ω)
  • CMRR/PSRR Mesurement
  • High-impedance probing

Datasheet

LRC-Meter (Agilent E4980A)
  • 20Hz to 2MHz
  • Measurement functions: Cp-D, Cp-Q, Cp-G, Cp-Rp, Cs-D, Cs-Q, Cs-Rs, Lp-D, Lp-Q, Lp-G, Lp-Rp, Lp-Rdc, Ls-D, Ls-Q, Ls-Rs, Ls-Rdc, R-X, Z-θd, Z-θr, G-B, Y- θd, Y-θr, Vdc-Idc

Datasheet

Parameter Analyzer (Agilent 4156C)
  • 4x High-resolution SMU
  • 2xVSU and 2xVMU
  • Resolution: 1 fA and 0.2 uV
  • Range: ±200 Volts and ±1 Amp High-Power SMU

Datasheet

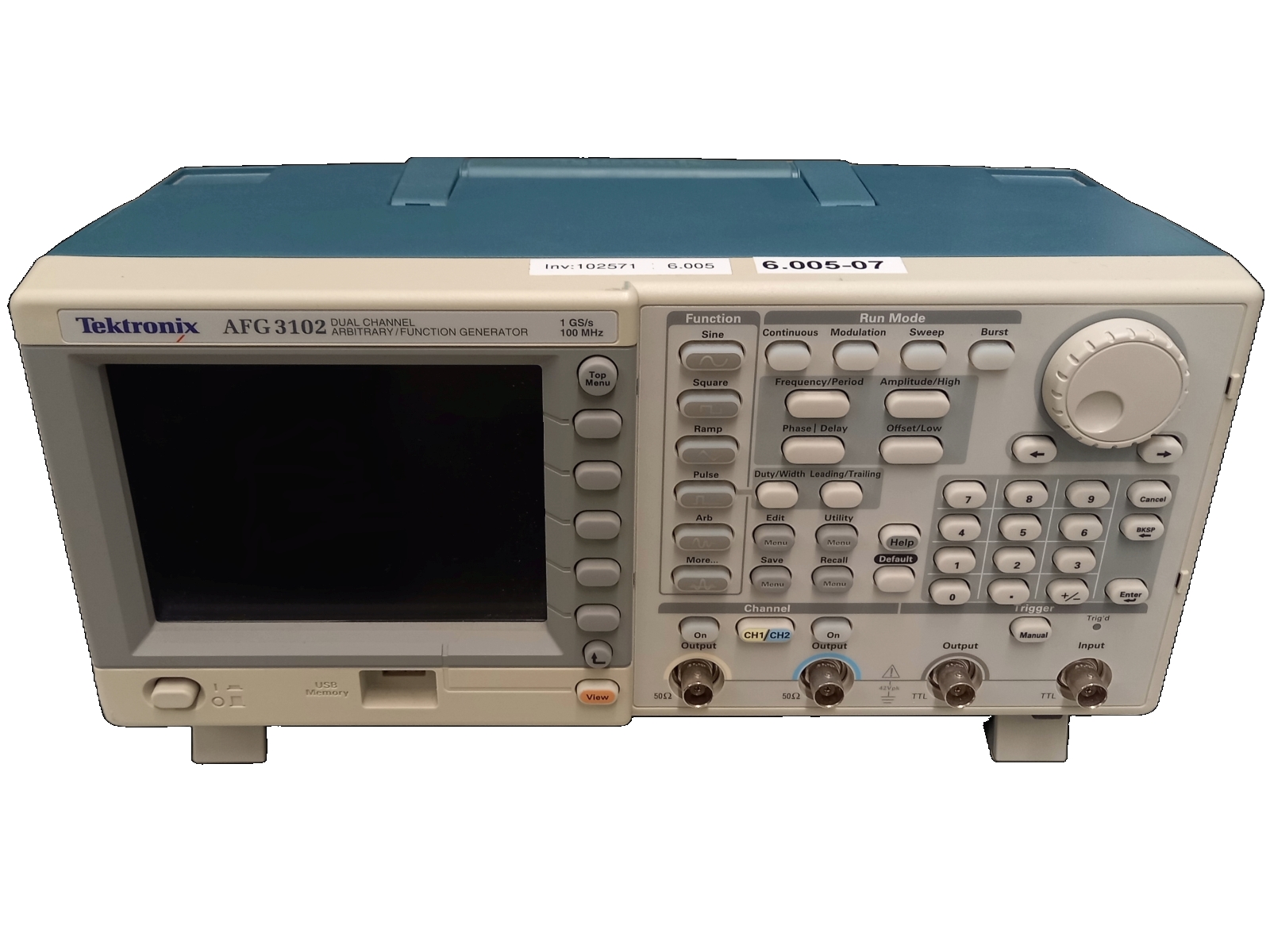

Arbitrary Function Generator (Tektronix AFG3102)
  • Two Synchron Output Channels
  • Bandwidth: 100 MHz with 250 MS/s
  • Resolution: 14 bit
  • Voltage Range: 10 Vpp @ 50 Ω
  • Rise/Falltime: ≤8 ns

Datasheet

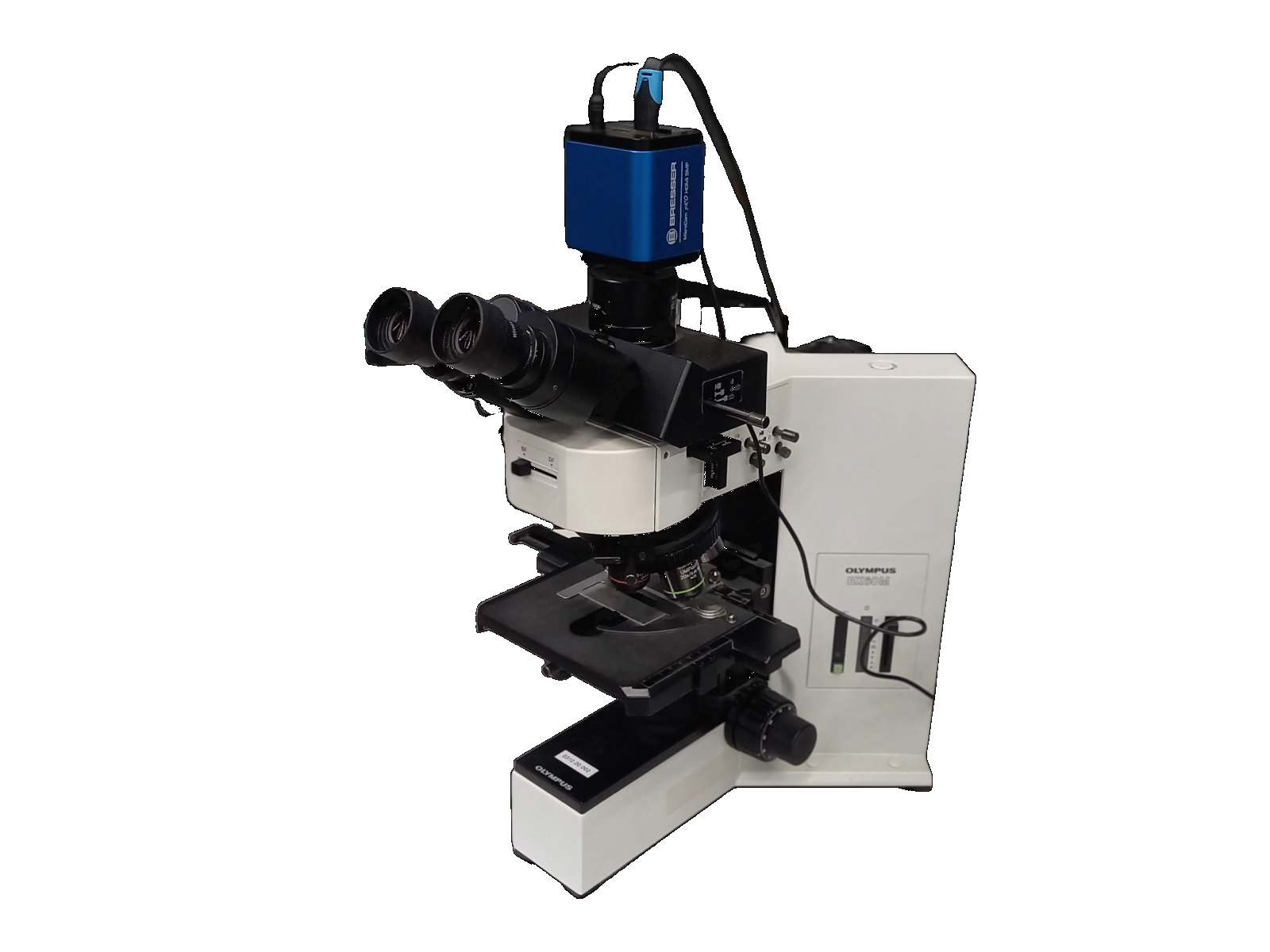

Microscope (Olympus BX60MF5)
  • Magnification: 1000x (eyepiece)
  • 2. Optischer channel with FHD-camera

Datasheet

Low Noise Voltage Preamplifier (Standford SR560)
  • Bandwidth: DC to 1 MHz
  • Input Noise: 4 nV/√ Hz
  • Gain: 1 to 50000
  • Two configurable signal filters
  • Line or battery
  • Input Range: 3 Vpp, Diff. or single-ended input
  • Output Range: 10 Vpp

Datasheet

Low Noise Current Preamplifiere (Standford SR570)
  • Bandwidth: DC to 1 MHz
  • Input Noise: 5 fA/√ Hz
  • Gain: 1 pA/V to 1 mA/V
  • Two configurable signal filters
  • Line or battery
  • Input Range: ±5 mA
  • Output Range: ±5 V

Datasheet

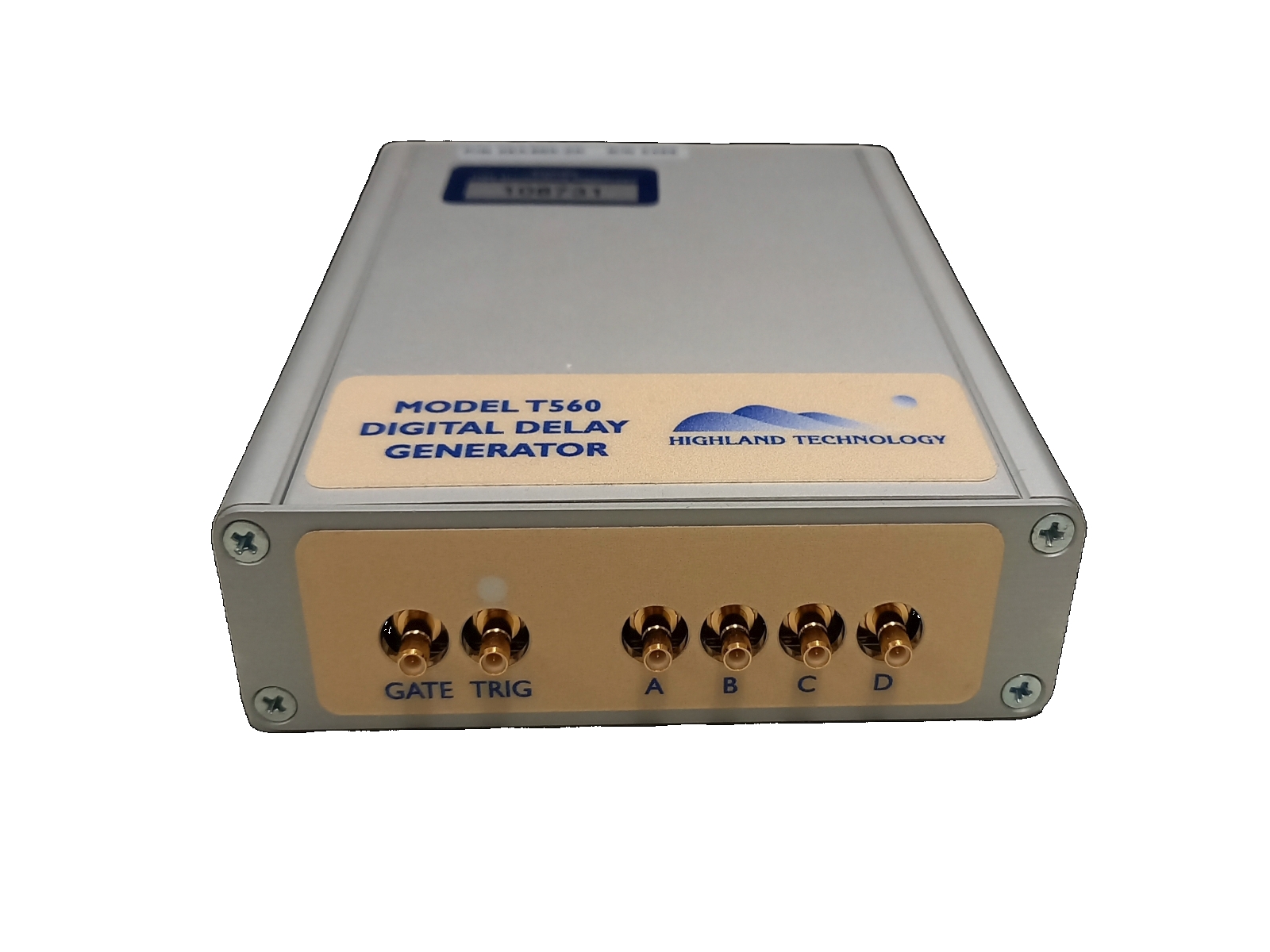

Delay and pulse generator (Highland Tech. T560)
  • Channels: 4 (TTL-level)
  • insertion delay: 21 ns ± 400 ps
  • delay range: 0 to 10 s with res. 10 ps
  • width range: 2 ns to 10 s with res. 10 ps
  • Fall- and Risetime: 750ps @ +5 V and 50 mA

Datasheet

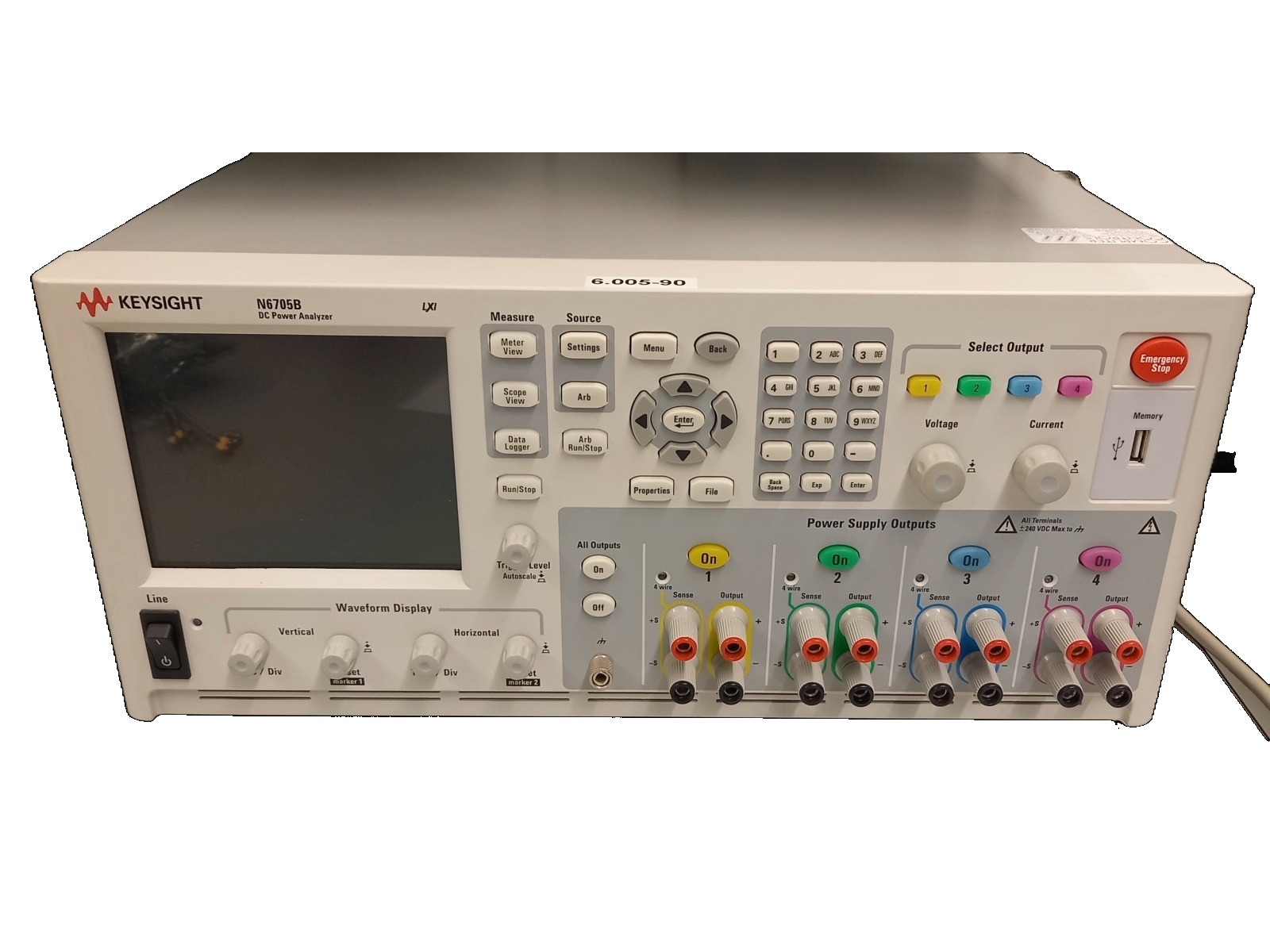

DC Power Analyzer (KeySight N6705B with n6761A, 2 x n6743B)
  • Modular: 4 Slots, 600 W
  • waveform generator: 18 bits, 100 kHz
  • voltage and current meas: up to 200 kHz, 512 kpts, 18 bits
  • logging: 4Gbyte

Datasheet

Thermal imaging camera (Teledyne Flir TG167)
  • Resolution: 80x60 pixel
  • Accuracy. ±1.5°C @ 50°C to 100°C
  • Thermal Sensitivity: <70 mK

Datasheet

Professional soldering station (with Weller WXR3)
  • 3 Ch, 420 W
  • Hot air
  • Extraction station
  • Microscope hand soldering station
  • ESD safe workstation

Datasheet
